Usitech 2000, specialist in small and medium-sized machining since 2007.
Our 4 shifts enable us to provide a fast, efficient, and hassle-free service 24/7.
Operating 24/7 with 4 shifts a week, we handle approximately 1 to 15 setups, granting us the advantage of providing flexible and prompt responses to our customers’ urgent needs.
Our Capabilities
Estimating and programming
We respond to price requests within 24 to 48 hours. We work with 2D and 3D Full 4- and 5-axis software (Feature Cam), and Parasolid .x_t and DXF drawings facilitate our programming.
Machining
Usitech 2000 has 6 numerically controlled machining centers. This allows us to produce both simple and complex parts with the highest quality.
Aluminum cutting
Usitech 2000 offers high volume precision aluminum cutting. It provides a flawless finish.
Sub-contracting
In order to increase its range of services under one roof. Usitech 2000 surrounds itself with specialized subcontractors suck as Plate 2000 Fabrication to meet all kinds of needs: laser cutting, bending, anodizing and plating of all kinds, screen printing and laser engraving, as well as painting services.
Quality Control
We have the ability to perform precise quality controls to ensure the compliance of parts using the CMM machine MITUTOYO CRYSTA-PLUS M443
Our Equipments

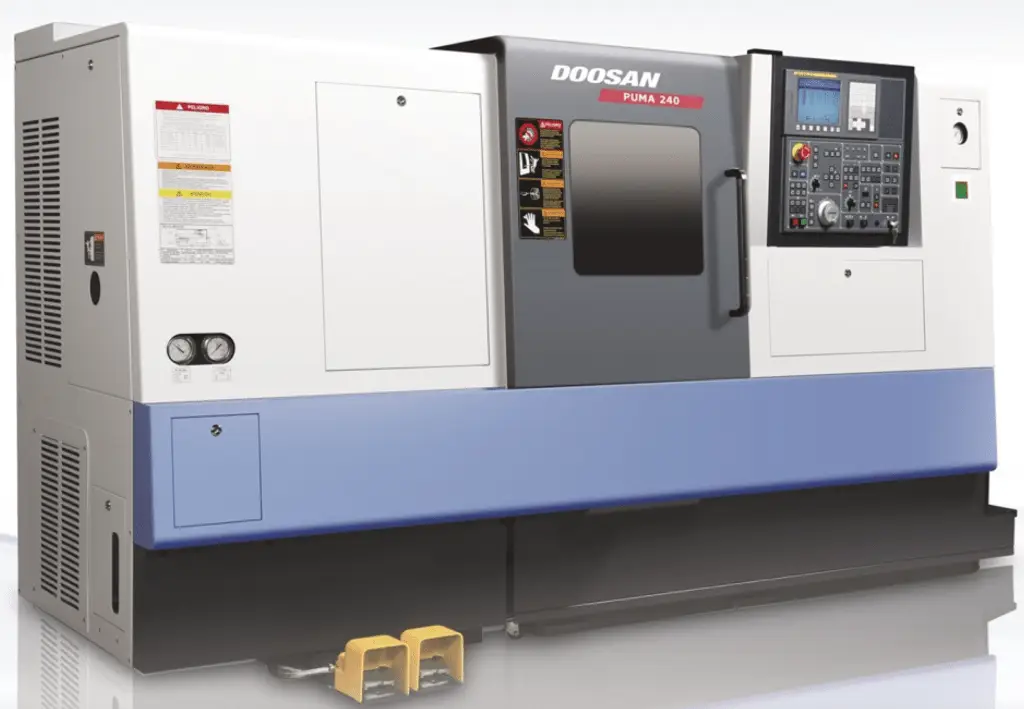

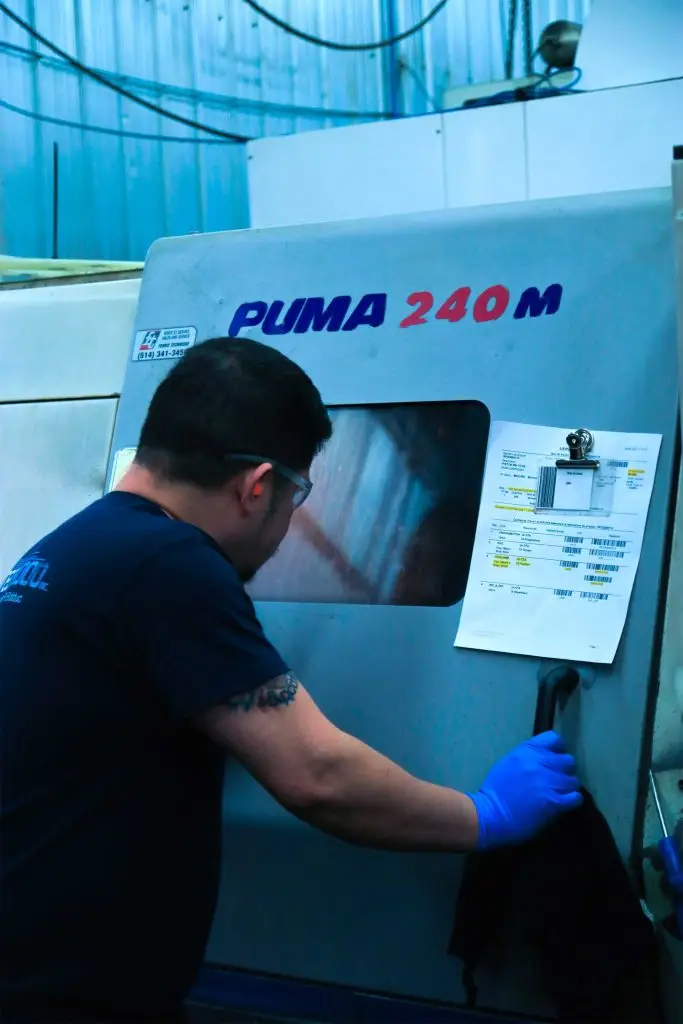

DOOSAN PUMA 240 MC 10’’ CHUCK, 3’’ PIN AND 18’’ BETWEEN TIPS
This enables turning operations, as well as grooving and other types of milling. The lathe is equipped with a chip conveyor and a tool measuring device. This equipment is perfect for machining single parts or small quantities. Its C-axis minimizes set-ups.
Caracteristics
| Item | Puma 240 MC | |
| Chuck Size | in. | 10 |
| Bar Capacity | in. | 3 |
| Swing Over Bed | in. | 21,7 |
| Swing Over Carr | in. | 15,4 |
| Maximum Turning Dia. | in. | 11,4 |
| Maximum Turning Length | in. | 21,6 |
| Spindle Motor | Hp-30 | 25 |
| Spindle Speed | Rpm | 35-3,500 |
| Rotary Tool | Rpm | 50-5,000 |
| Number of Tool | # | 12 |
HURON VX 12 48’’ (X) X 24’’ (Y) X 24’’ (Z)
Vertical milling with a gooseneck structure, made of high-quality ribbed cast iron, which allows simple and complex parts to be machined with a 4 th positioning axis. This milling machine can machine a wide range of materials : plastic, aluminum, steel and stainless steel. Its 4 th axis minimizes handling between machining stages.
Caracteristics
| Term | VX 12 | |
| X/Y/Z Axis Travel | in. | 48/23.6/24,6 |
| Table Load | Lbs. | 2640 |
| Table Size | in. | 55.125 x 24.8 |
| Spindle Speed | Rpm | 10 000 |
| Tool Shank | CAT # | 40 |
| X/Y Rapid Traverse | Mm/mn | 24.000 |
| Z Rapid Traverse | Mm/mn | 24.000 |
| Cutting Feed Rate | Mm/mn | 1 – 10.000 |

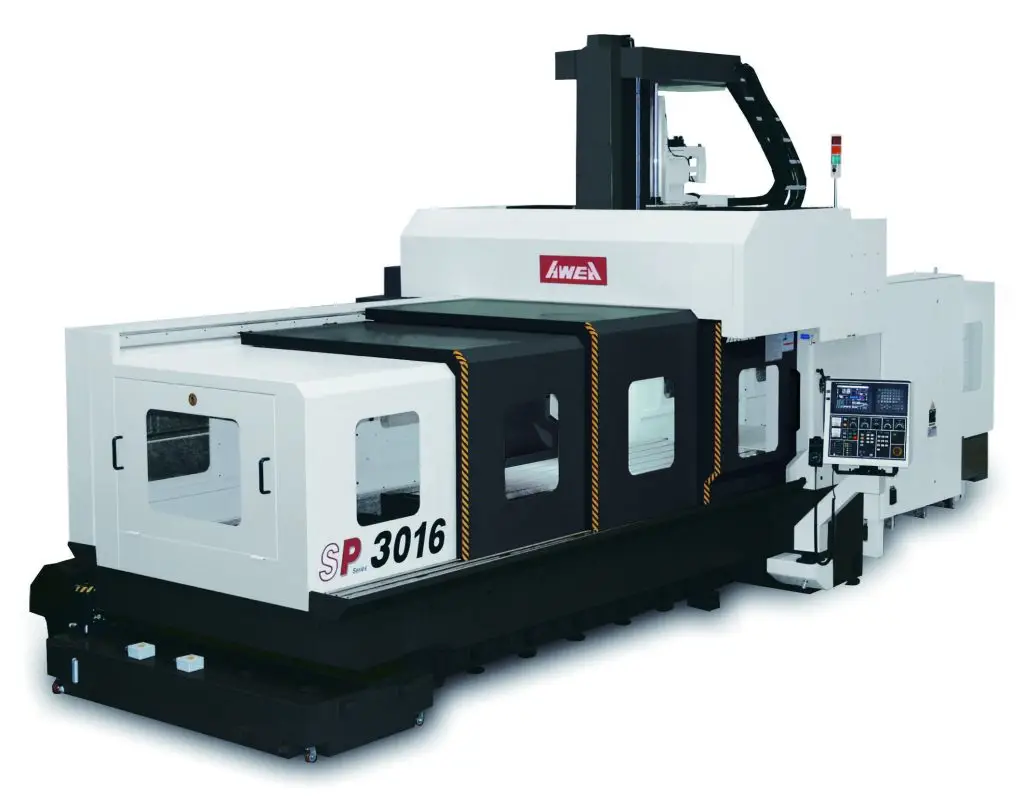

AWEA SP 3016 HSS 120’’ (X) X 60’’ (Y) X 30’’ (Z)
Vertical milling with an H-shaped structure for machining large parts. This milling machine can machine many different types of parts. Whether castings, welded mechanics or simply plates. Its 4th axis increases precision while reducing set-ups.
Caracteristics
| AWEA SP 3016 HSS | |
| Working Capacity | |
| X Travel | 3000 mm (120″) |
| Z Travel | 1600 mm (63″) |
| Y Travel | 760 mm (30″) |
| Table Size (X Direction) | 3000 mm (188″) |
| Table Size (Y Direction) | 1500 mm (59″) |
| Table Load | 4500 Kg (9900 lb) |
| Dist. Between Columns | 1700 mm (67″) |
| Spindle Nose To Table | 160 – 920 mm (6″ – 36″) |
| Table Rotative Golden Sun | 12,000″ |
| Headstock | |
| Spindle Motor | 30 HP (22 Kw) |
| Spindle Speed | 15 000 Rpm |
| Spindle Taper | CAT 40 |
NAKAMURA WT-300 - 2 SPINDLES, 10'' AND 8''
Turning diameter ( bottom ), max. 10’’; Distance between spindles, max. 43’’; L-Bar capacity, 3’’. This two-spindle, two-turret lathe is perfect for machining complex, high-volume parts. Simultaneous machining on both spindles makes it possible to offer high-quality parts at competitive prices.
Caracteristics Not Available

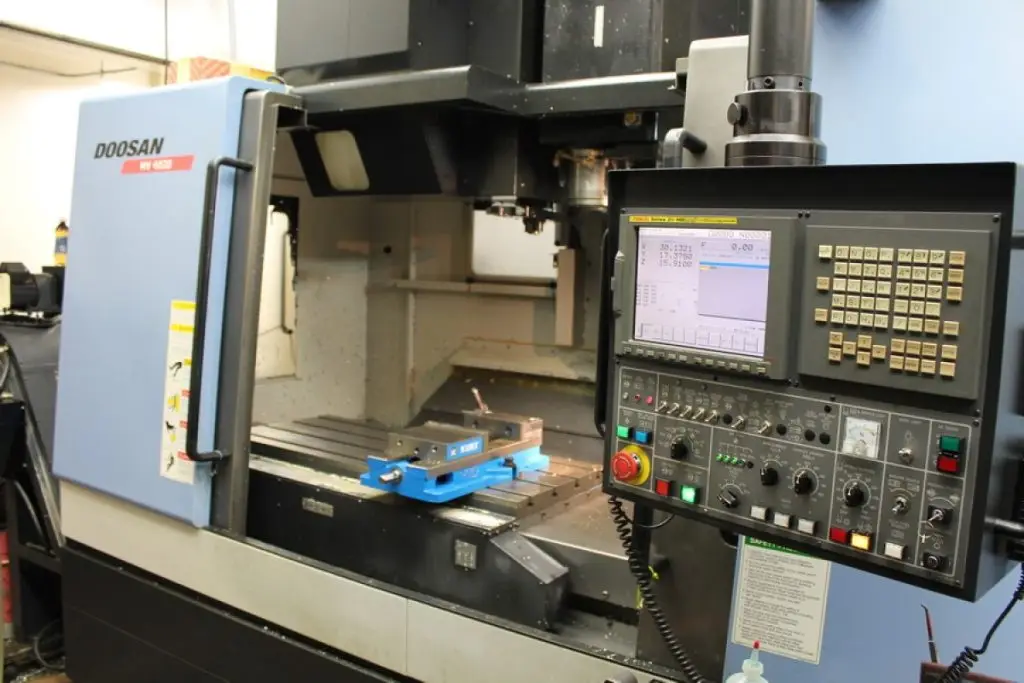

DOOSAN MV 4020 40’’ (X) X 20’’ (Y) X 24’’ (Z)
This machine has a central cooling spindle, 8000 rpm, and a side-mounted tool changer. It can process different materials such as plastic, aluminum, steel, and stainless steel. Its 4th axis allows it to minimize handling between different machining steps.
Caracteristics
| Term | MV 4020 | |
| X/Y/Z Axis Travel | in. | 40/20/24,6 |
| Table Load | Lbs. | 1760 |
| Table Size | in. | 47,2 x 19,7 |
| Spindle Speed | Rpm | 8000 |
| Tool Shank | CAT # | 40 |
| X/Y Rapid Traverse | Ipm | 1,181 |
| Z Rapid Traverse | Ipm | 945 |
| Cutting Feed Rate | Ipm | 04-315 |
| Table Rotative | in. | 12″ |
MATSUURAA H. PLUS 400 - PALLET CHANGER 12’’ X 14’’
A solution that improves production, minimizes costs and increases part quality. This milling machine is equipped with two tables, allowing set-up and changeover of parts with minimum downtime. Ideal for complex, high-volume.
Caracteristics Not Available
